DeviceNet Inclinometer

Vigor Technology MEMS Inclinometer / DeviceNet Inclinometer


  • Highest combined absolute accuracy ±0.01°@25℃
  • Absolute accuracy combined with absolute linearity,cross axis sensitivity, offset, repeatability, hysteresis
  • Cross-axis sensitivity ≤±0.1%FS
  • Offset ≤±0.005°
  • Precise installation & higher actual accuracy
  • Adjustable vibration suppression while running
  • Temperature drift accuracy(optional):±0.05°@-40~+85℃
  • Various output interfaces
  • EMC certificated


Vessel, Precisioninstruments, Security detection, Civil engineering, Military project, Platform leveling, Drilling machines, Hydraulic leveling.

DeviceNet Inclinometer
Measurement range ±5° ±10° ±15° ±30° ±45° ±60°
Combined absolute
accuracy ①(@25 ℃ )
±0.01° ±0.015° ±0.02° ±0.04° ±0.06° ±0.08°

Absolute linearity(LSF,%FS)

±0.06 ±0.03 ±0.03 ±0.03 ±0.02 ±0.02

Cross-axis sensitivity②

Offset ③ ±0.005° ±0.008°
Repeatability ±0.0025°
Hysteresis ±0.0025°
Allowed installation misalignment④ ±4.0° ±3.0° ±2.5° ±1.5° ±1.2° ±1.2°
Input-axis misalignment ≤±0.1°
Sensitivity temperature drift
≤100ppm/℃ ≤50ppm/℃
Offset temperature drift
≤0.003°/ ℃
Offset turn on repeatability⑤ ±0.008°
Resolution 0.0025°
Long-term stability(1 year) ≤0.02°
Measurement axis 1 or 2 axis
Temperature sensor Range: -50~125℃ ,Accuracy:±1℃
Output DeviceNet protocol, Transmission rate: 125Kbps,250Kbps,500Kbps
support 128 bytes I/O message, 250 bytes explicit message transmission
Topology: point-to-point, multi-master or master / slave communication mode
Maximum nodes 64
Cold start warming time 60s
Response time 0.3s(@t90)
Refresh rate 5Hz, 10Hz, 20Hz
Response frequency 3Hz @-3dB
Power supply 9~36VDC
Power consumption Average working current≤250mA(25℃&24VDC)
Operation temperature range -40~85℃
Storage temperature range -60~100℃
Insulation resistance 100MΩ
MTBF ≥25000 h/times
Shock 100g@11ms, three-axis, half-sine
Vibration 8grms, 20~2000Hz
Protection IP65(Optional IP67)

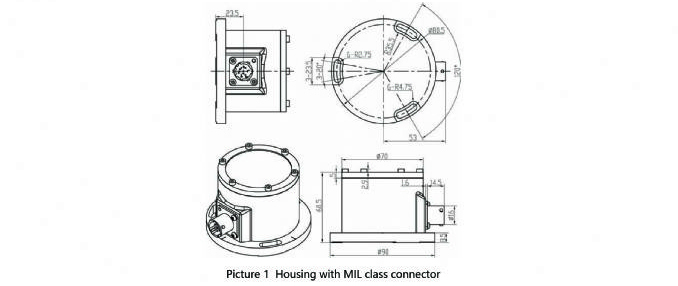

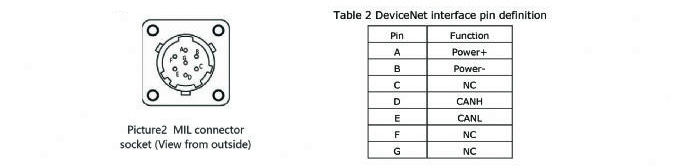

Connecting Military class connector(MIL-C-26482)
Weight 420g (without connector and cable)

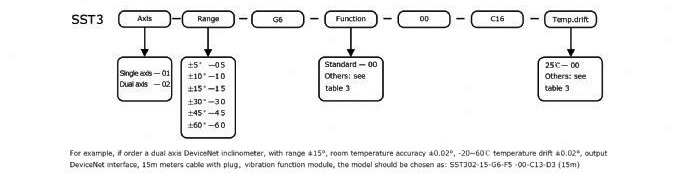

① Combined absolute accuracy means the compositive value of sensor's absolute linearity, repeatability, hysteresis, offset and cross-axis sensitivity error.(in room temperature condition) as
②The cross-axis sensitivity means the angle that the tilt sensor may be banked to the normal tilt direction of sensor. The cross-axis sensitivity (± 0.1%FS)shows how much perpendicular acceleration or inclination is coupled to the inclinometer output signal. For example, for the single-axis inclinometer withrange ±30°(assuming the X-axis as measured tilt direction), when there is a 10° tilt angle perpendicular to the X-axis direction(the actual measuring angle is no change, example as +8.505°), the output signal will generate additional error for this 10° tilt angle, this error is called as cross-axis sensitivity error.SST300`s cross-axis sensitivity is 0.1%FS, the extra error is 0.1%×30°=0.03°(max), then real output angle should be +(8.505°±0.03°). In SST300 series,this error has been combined into the absolute accuracy
③ Offset means that when no angle input (such as the inclinometer is placed on an absolute level platform), output of sensor is not equal to zero,the actualoutput value is zero offset value.
④ Allowed installation misalignment means during the installation, the allowable installation angle deviation between actual tilt direction and sensor's nature measure ment direction. In general, when installed,SST300 sensor is required that the measured tilt direction keep parallel or coincident with sensor designated edge, this parameter can be allowed a certain deviation when sensor is installed and does not affect the measurement accuracy.
⑤ Offset turn on repeatability means the repeatability of the sensor in repeated by supply power on-off-on many times.
