Vigor Technology MEMS Inclinometer

Click to reach us online

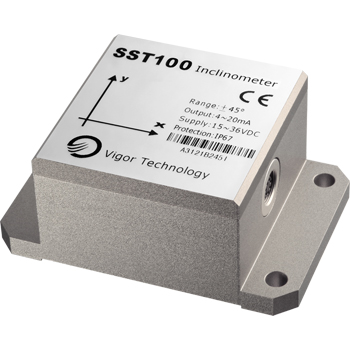

SST100 Inclinometer

Vigor Technology MEMS Inclinometer / SST100 Inclinometer

Features

  • High stability & performance-cost ratio
  • Small size,light weight,easy to integrate
  • Cross-axis sensitivity up to ±0.3%FS
  • Omni-direction alarm & dual alarms,analog & digital outputs
  • Full-seal,resistant to vibration and shock
  • IP67 protection


Applications

Mobile construction Machinery, Factory automation, Solar equipment, Transportation machinery, Medical equipment,etc.

SST100 Inclinometer

Table1 SST141/2,SST151/2,SST161/2 Inclinometer
Product type SST141,SST142,SST151,SST152,SST161,SST162 with analog/digital output
Measurement range ±5° ±10° ±15° ±30° ±45° ±60° ±90° ±180°
Accuracy(@25℃ ) ±0.1°
Temperature drift coefficient /℃ @ -20~65℃ ±0.004° ±0.005° ±0.009°
Resolution 0.003°
Repeatability ±0.02°
Offset repeatability ±0.02°
Offset ±0.02°
Measurement axis 1 axis:SST141,SST151,SST161
2 axis:SST142,SST152,SST162
Response time 0.3s @ t90
Cross-axis sensitivity ±0.3%FS
Digital output
for SST161,SST162		 RS232(optional RS485),update rate:5Hz(default),10Hz,20Hz optional
Format: 19200 baud,8 data bits,1 start bit,1 stop bit,none parity,ASCII
CAN2.0: according to ISO11898-2 standard, 5k~1MBit/s baud rate, support 127 nodes, built in high speed photoelectric isolator
Voltage output
for SST141,SST142		 0.5~4.5VDC
Output Impedance:0.3Ω,load impedance:< 100Ω
Current output
for SST151,SST152		 4~20mA
Output Impedance:50MΩ,load impedance:150~250Ω
Cold start warming time 60s
Power supply With digital/voltage output:9~36VDC,consumption≤20mA
With current output:16~36VDC,consumption≤40mA
Power supply reject ratio ≥85dB
Operation temperature range -40~85℃
Storage temperature range -40~100℃
EMC According to EN 61000
Insulation resistance ≥100MΩ
MTBF 150000h/times
Shock 100g@11ms,three-axis,half-sine
Vibration 8grms,20~2000Hz
Protection IP67
Housing 6061-T6 Aluminum alloy
Connecting Standard: Binder712 connector,optional: metal pigtail
Cable 7-wire shielded cable with tensile reinforcement,heavy duty up to 30Kg
Weight ≤240g(without connector and cable)

Table2 SST122 Inclinometer
Product type SST122 with double alarms output
Control range ±5° ±10° ±15° ±30° ±45° ±60°
Control direction ±0.004° ±0.004° ±0.004° ±0.004° ±0.005° ±0.005°
Control direction X &Y axis
Resolution 0.02°
Alarm angle error ±0.1°
Alarm trigger delay 1.0s
disconnect delay 1.0s
Repeatability ±0.05°
Hysteresis ±0.05°
Switch endurance ≥5000000 times
point 2points/axis
setting Fixed before delivery
delay time 0.3~5.0s,default 1.0s
Output NO or NC(default NO),OC output,internal isolation
switch capacity 1A@5~48VDC,inductive load
supply 9~36VDC,≤50mA(when no load)
Alarm control supply 9~36VDC
Connecting Metal pigtail
Cable 7-wire shielded cable with tensile reinforcement,heavy duty up to 30Kg
Power supply reject ratio ≥85dB
Operation temperature range -40~85℃
Storage temperature range -40~100℃
EMC According to EN 61000
Insulation resistance ≥100MΩ
MIBF 150000h/times
Shock 100g@11ms,three-axis,half-sine
Vibration 8grms,20~2000Hz
Protection IP67
Housing 6061-T6 Aluminum alloy
Weight ≤240g(without connector and cable)

Table3 SST130 Inclinometer
Product type SST130 with Omni-direction alarm output
Control range ±5° ±5° ±5° ±5° ±5° ±5°
Temperature drift
/℃ @ -20~65 ℃		 ±0.004° ±0.004° ±0.004° ±0.004° ±0.005° ±0.005°
Control direction Omni-direction(combined with X and Y axis)
Resolution ±0.02°
Alarm angle error ±0.1°
Alarm trigger delay 1.0s
Alarm disconnect delay 1.0s
Repeatability ±0.05°
Hysteresis ±0.05°
Switch endurance ≥5000000 times
Alarm point One alarm point
Alarm point setting Online setting via RS232
Alarm time delay 0.3~5.0s,Default value 1.0s,adjustable.
Output NO or NC(default NO),OC output,internal isolation
Alarm switch capacity 1A@5~48VDC
Online setting via RS232 Zero setting: available setting range:≤±5°
Alarm point setting: Set any angle as alarm point,default value is ±3°
RS232 interface Format:19200 baud,8 data bits,1start bit,1stop bit,none parity,ASCII
Power supply 9~36VDC,≤50mA
Alarm control supply 9~36VDC
Connecting Standard: Binder712 connector,optional: metal pigtail
Cable 7-wire shielded cable with tensile reinforcement,heavy duty up to 30Kg
Power supply reject ratio ≥85dB
Operation temperature range -40~85℃
Storage temperature range -40~100℃
EMC According to EN 61000
Insulation resistance ≥100MΩ
MIBF 150000h/times
Shock 100g@11ms,three-axis,half-sine
Vibration 8grms,20~2000Hz
Protection IP67
Housing 6061-T6 Aluminium alloy
Weight ≤260g(without connector and cable)

Table4 SST111&SST121 Inclinometer
Product type SST111 & SST121 inclinometer with alarm output
Control range ±5° ±10° ±15° ±30° ±45° ±60°
Temperature drift
/℃ @ -20~65℃		 ±0.004° ±0.004° ±0.004° ±0.005° ±0.005° ±0.005°
Control direction Single Axis: SST111
Dual Axis: SST121
Resolution 0.02°
Alarm angle error ±0.1°
Alarm trigger delay 1.0s
Alarm disconnect delay 1.0s
Repeatability ±0.05°
Hysteresis ±0.05°
Switch endurance ≥5000000 times
Alarm point Single Axis(SST111): one alarm point of X Axis
Dual Axis(SST121): one alarm point of each Axis
Alarm point setting Online setting via RS232
Alarm time delay 0.3~5.0s,Default 1.0s,adjustable
Output NO or NC(default NO),OC output,internal isolation
Alarm switch capacity 1A@5~48VDC
Online setting via RS232 Zero setting: available setting range:≤±5°
Alarm point setting: Set any angle as alarm point,default value is ±3°
RS232 interface Format:19200 baud,8 data bits,1start bit,1stop bit,none parity,ASCII
Power supply 9~36VDC,≤50mA
Alarm control supply 9~36VDC
Connecting Standard: Binder712 connector,optional: metal pigtail
Cable 7-wire shielded cable with tensile reinforcement,heavy duty up to 30Kg
Power supply reject ratio ≥85dB
Operation temperature range -40~85℃
Storage temperature range -40~100℃
EMC According to EN 61000
Insulation resistance ≥100MΩ
MIBF MIBF150000h/times
Shock 100g@11ms,three-axis,half-sine
Vibration 8grms,20~2000Hz
Protection IP67
Housing 6061-T6 Aluminium alloy
Weight ≤240g(without connector and cable)
SST100 Inclinometer

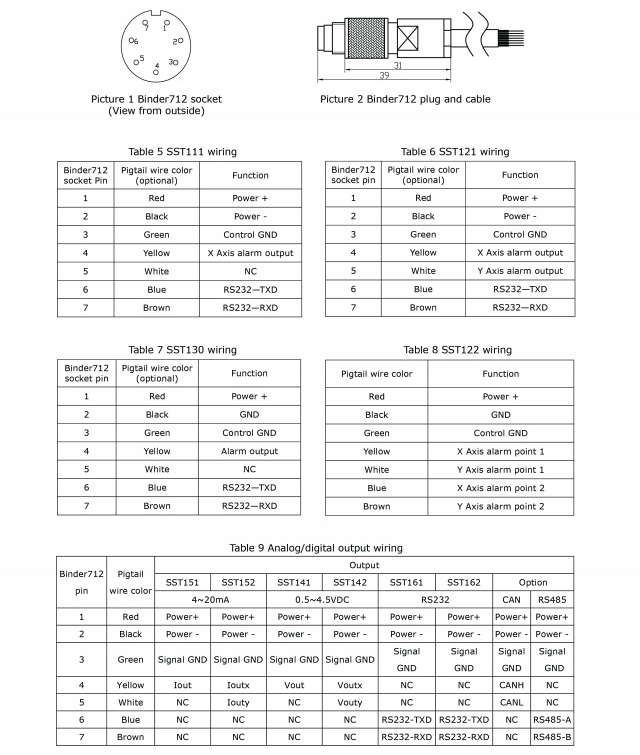

Wiring

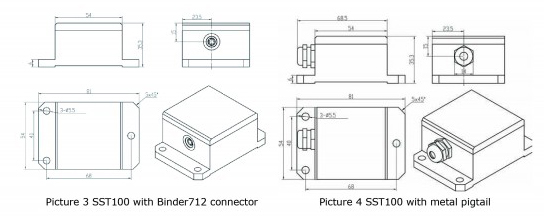

Dimensions (mm)

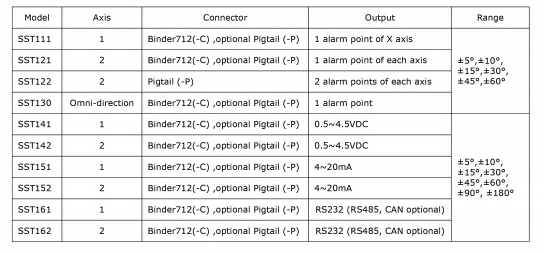

Ordering
