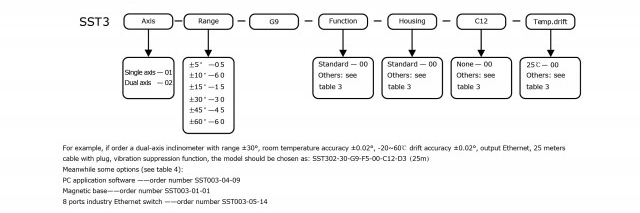

Vigor Technology MEMS Inclinometer / Ethernet Inclinometer
Features
- 10/100M self-adaptive Ethernet Interface
- Support ATUO MDI/MDIX, allowing crossover cable connection or straight-through cable connection
- Selectable Baud rate between 1200bps and 115200 bps
- Selectable working modes,such as TCP Server, TCP Client,UDP, Real COM driver;also,in these modes, most of the parameters, such as Multicasting address, working port, destination port, destination IP, and port number are configurable by user
- Build-in WEB server,allowing users to download their configuration webpage easily
| Measurement range |
±5° |
±10° |
±15° |
±30° |
±45° |
±60° |
Combined absolute
accuracy ①(@25 ℃ ) |
±0.01° |
±0.015° |
±0.02° |
±0.04° |
±0.06° |
±0.08° |
Accuracy
Subroutine
parameter |
Absolute linearity(LSF,%FS)
|
±0.06 |
±0.03 |
±0.03 |
±0.03 |
±0.02 |
±0.02 |
|
Cross-axis sensitivity②
|
±0.1%FS |
| Offset ③ |
±0.005° |
±0.008° |
| Repeatability |
±0.0025° |
| Hysteresis |
±0.0025° |
| Allowed installation misalignment④ |
±4.0° |
±3.0° |
±2.5° |
±1.5° |
±1.2° |
±1.2° |
| Input-axis misalignment |
≤±0.1° |
Sensitivity temperature drift
coefficient(max.) |
≤100ppm/℃ |
≤50ppm/℃ |
Offset temperature drift
coefficient(max.) |
≤0.003°/ ℃ |
| Offset turn on repeatability⑤ |
±0.008° |
| Resolution |
0.0025° |
| Long-term stability(1 year)⑥ |
≤0.02° |
| Measurement axis |
1 or 2 axis |
| Temperature sensor |
Range: -50~125℃ ,Accuracy:±1℃ |
| Function |
Set zero point, baud rate, local gravitational acceleration value, zero calibration,vibration suppression filter coefficients, ID address, refresh rate, etc |
| Output |
Ethernet(TCP/IP/UDP Protocol) |
| Cold start warming time |
60s |
| Response time⑦ |
0.3s(@t90) |
| Refresh rate(digital output) |
5Hz(Optional 10Hz,20Hz) |
| Power supply |
9~36VDC |
| Power consumption |
Average working current≤250Ma(25℃&24VDC) |
| Operation temperature range |
-40~85℃ |
| Storage temperature range |
-60~100℃ |
| EMC |
According to EN 61000 |
| Insulation resistance |
100MΩ |
| MTBF |
≥25000 hours |
| Shock |
100g@11ms, three-axis, half-sine |
| Vibration |
8grms, 20~2000Hz |
| Protection |
IP65(Optional IP67） |

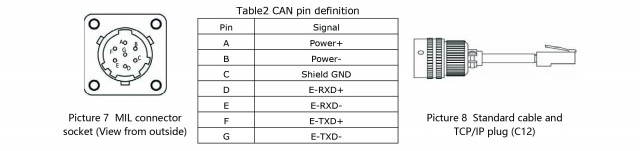

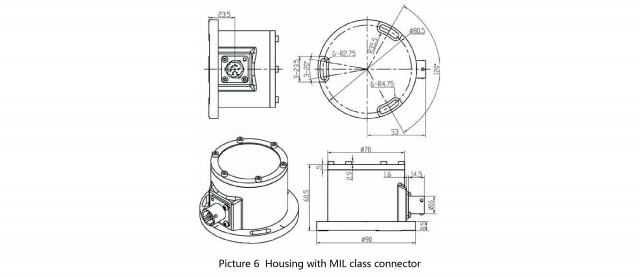

| Connecting |
Military class connector(MIL-C-26482) |
| Weight |
420g（without connector and cables） |
① Combined absolute accuracy means the compositive value of sensor's absolute linearity, repeatability, hysteresis, offset and cross-axis sensitivity error.(in room temperature condition) as
Δ=±
②The cross-axis sensitivity means the angle that the tilt sensor may be banked to the normal tilt direction of sensor. The cross-axis sensitivity (± 0.1%FS)shows how much perpendicular acceleration or inclination is coupled to the inclinometer output signal. For example, for the single-axis inclinometer withrange ±30°(assuming the X-axis as measured tilt direction), when there is a 10° tilt angle perpendicular to the X-axis direction(the actual measuring angle is no change, example as +8.505°), the output signal will generate additional error for this 10° tilt angle, this error is called as cross-axis sensitivity error.SST300`s cross-axis sensitivity is 0.1%FS, the extra error is 0.1%×30°=0.03°(max), then real output angle should be +(8.505°±0.03°). In SST300 series,this error has been combined into the absolute accuracy
③ Offset means that when no angle input (such as the inclinometer is placed on an absolute level platform), output of sensor is not equal to zero,the actualoutput value is zero offset value.
④ Allowed installation misalignment means during the installation, the allowable installation angle deviation between actual tilt direction and sensor's nature measure ment direction. In general, when installed,SST300 sensor is required that the measured tilt direction keep parallel or coincident with sensor designated edge, this parameter can be allowed a certain deviation when sensor is installed and does not affect the measurement accuracy.
⑤ Offset turn on repeatability means the repeatability of the sensor in repeated by supply power on-off-on many times.
⑥ Long-term stability means the deviation between the statistics of the maximum and the minimum output value after a year of continuous power supply when the sensor is at 20℃ .
⑦ The response time refers to the angle sensor in a step change (such as the angle changes from -10 ° to +10 °within 5ms), the time required that output of the sensor achieved to the standard value of 90%. The index is different from the sensor set-up time
