MEPH - Pnömatik Hidrolik Tip Slip Rings

MEPH1200

Genel Bilgiler
Teknik Bilgiler
Dokümanlar
Diğer Özellikler
Ürün Videosu

MEPH1200 - Pnömatik Hidrolik Tip Slip Rings
MEPH300 döner aksamlar, 3 geçiş yolunu destekler pnömatik/hidrolik, güç, sinyal, Ethernet, USB, Devicenet, Control Net, Canbus ile talep üzerine kombine edilebilir. Ayrıca şaft ile veya flanşlı bağlantı ile bağlanabilir.

Boru ve ortam tipi özellikleri talepte belirtilmelidir.

PART #	WAY(PASSAGE)	PRESSURE	2A/SIGNAL	10A	PIPE SIZE
MEPH1200	12	1500PSI	none	none	3mm/5mm/8mm/12mm
MEPH1200-S06	12	1500PSI	6	0	3mm/5mm/8mm
MEPH1200-P0610	12	1500PSI	0	6	3mm/5mm/8mm
MEPH1200-S12	12	1500PSI	12	0	3mm/5mm/8mm
MEPH1200-P1210	12	1500PSI	0	12	3mm/5mm/8mm
MEPH1200-P0610-S06	12	1500PSI	6	6	3mm/5mm/8mm
MEPH1200-P0610-S06	12	1500PSI	18	0	3mm/5mm/8mm
MEPH1200-P1810	12	1500PSI	0	18	3mm/5mm/8mm
MEPH1200-S24	12	1500PSI	24	0	3mm/5mm/8mm

Rotary Joints Specifications
PassageWay	12	Torque	8 N.m
Media Type	Coolant,Gases,Oil,Steam,Water	Presssure	0~1500PSI
Max. Rotational Speed	250RPM	Temp.	-40° C to 105° C
Connection Sizes	3mm~15mm	Material Type	Aluminum

Electrical Specifications
Rating voltage	400 VDC/VAC	Contact material	Precious Metal:Gold-Gold
Dielectric strength	1000VDC@50Hz	Lead Wire	UL Teflon®
Insulation resistance	1000MΩ@600VDC	Lead Lengths	250mm
Operating Temp.	-40°C to 80°C	Protection	IP51
Mechanical vibratio	MIL-SID-810E	Humidity	10% to 90% RH
Materials	Lead Free,RoHS compliant	CE Certified	YES
Notes: 1)The operational life of the unit is dependent upon rotational speed, environment and temperature. 2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code. 3)Electrical noise is dependent upon the rotating speed and current,voltage.

How to Order?

Please see ordering information instructions as below:

MEPH1200

Build-On-Request Flowing:

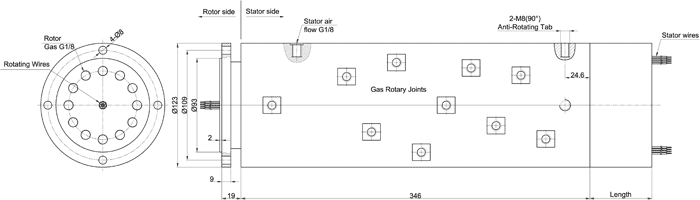

Standard drawings:

Lead wire Color codes
Rings#	Color Code	Rings#	Color Code	Rings#	Color Code
1	BLK	5	YEL	9	GRY
2	BRN	6	GRN	10	WHT
3	RED	7	BLU	11	PINK
4	ORN	8	PURPLE	12	AZURY

MEPH1200 - Pnömatik Hidrolik Tip Slip Rings

1) Connection Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1". Other sizes available upon request.

2) Connection Type NPT & BSPP threads standard. SAE, NPTF, and other thread options are available on a custom basis.

3) Plating and Coatings Black oxide plating is standard. Anodized, E-Nickel, Chrome, Nitride, Ceramic and other specialty platings are available as custom options.

4) Materials Carbon steel is the standard material for the GP Series, Stainless Steel is the standard material for the GPS Series. Aluminum, Brass, and other materials are available on a custom basis.

5) Slip Ring Options The MEPH Series unions are available with a number of electrical slip ring options for power, signal and data transfer. The assembly is available with an aluminum cover to protect the slip ring during use in demanding environments.

6) Media Types: Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.

If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!

Typical Application
