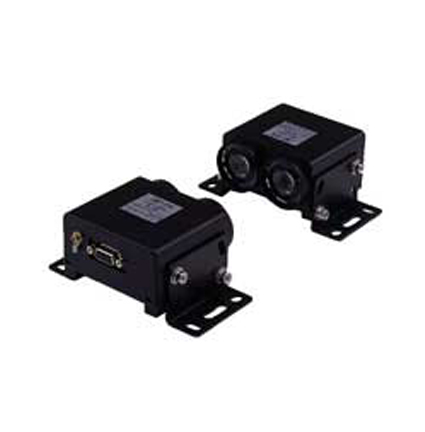

Seri Tip CWF-01/02 - Hokuyo Optik Data Transfer Cihazları
İletim mesafesi 50m, küçük ebatlı ve hafif
Gerekli özellikler 40x80x80mm bünyesinde mevcuttur.
Bu, otomatik stoklar, kırıcı vinçler veya gever vinçler ayrıca BWF serisi uygulamalar için uygundur.
Seri Tip CWF-01/02 - Hokuyo Optik Data Transfer Cihazları
Specifications
|
Model No.
|
CWF-01A
|
CWF-01B
|
CWF-02A
|
CWF-02B
|
|
Transmission distance
|
50ｍ
|
|
Directional angle
|
±2°
|
|
Power source
|
24VDC（+10％，-10％）
|
|
Current consumption
|
80mA
|
|
Transmission method
|
Full-duplex two-way transmission
|
|
Transmission speed
|
DC to 19,200bps
|
DC to 9,600bps
|
|
Interface
|
RS-422
|
RS-232C
|
|
Modulation method
|
FSK modulation
|
|
Modulated frequency
|
Transmission:5.5MHz
Reception:6.0MHz
|
Transmission:6.0MHz
Reception:5.5MHz
|
Transmission:5.5MHz
Reception:6.0MHz
|
Transmission:6.0MHz
Reception:5.5MHz
|
|
Connection
|
D-sub connector with 9-pin
|
|
Ambient temperature/humidity
|
-10 to +50 degrees C, 85%RH or less(not icing)
|
|
Ambient illuminance
|
20,000lux or less(Halogen/incandescent lamp)
|
|
Impact resistance
|
490m/s2, each 10 time in X, Y and Z directions
|
|
Vibration resistance
|
Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z directions
|
|
Noise resistance
|
Impulse noise simulator, pulse width:1µ, 100ns, repeated cycle:100Hz, normal mode 1000V, common mode 500V
|
|
Protective structure
|
IP60(IEC standard)
|
|
Warning output(ARM)
|
ON when light-receiving level margin 1.5 times or more, Photo-coupler, open-collector 35V, 50mA
|
|
Weight
|
Approx. 240g
|
