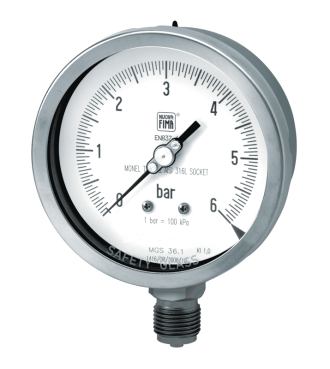

Bourdon tube pressure gauges NACE MR0103/MR0175 – ISO 15156-3 version DS 4", 6" (100-150mm)
These instruments are designed for petrochemical industry. They are built to resist to the most severe conditions created by H2S, by the environment and for those fluids, which have high viscosity and do not crystallize. The quality of the materials used to build the sensible element allows their use with high frequency pulsating pressures. The TIG welding between the case and the process socket, strengthens the instrument and assures a better tight in case of dampening fluid. The advantages of filling the case of the instrument with a dampening fluid are: reduced pointer fluctuation, reduced wear of rotating parts of the movement when pulsant vibrations and pulsations occur. Moreover condensation and corrosive atmospheres which could damage the internal
| Industrial sector: |
- Chemical, Petrochemical
- Water treatment
- Oil & Gas
- Engineering Procurement Construction (EPC)
|
| Instrument type: |
- Bourdon tube pressure gauges
|
| Specific applications: |
- NACE version
- ATEX version
- Corrosive fluids
- Low ambient temperature
- Vacuum
- Combined (Vacuum + Pressure)
- Vibrations
|
| Conformity: |
- EN 837 standard
- NACE MR0175
- NACE MR0103
- Directive PED 97/23/CE
- Directive ATEX 94/9/CE
- Gost R pattern approval
|
| Accuracy: |
|
| Function: |
|
| Material: |
- Stainless steel and special materials
|
| Range: |
- 0...1 / 0...600bar and vacuum
|
| Protection degree: |
|
| Process connection material: |
|
| Sensing element material: |
|
| Working pressure: |
|
