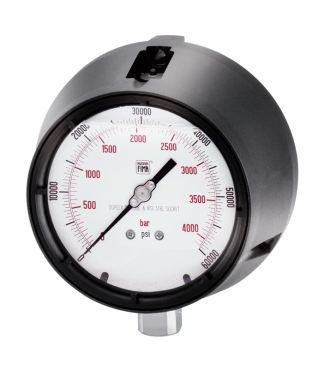

Bourdon tube "solid-front" pressure gauges for high pressures, turret case DS 4.5" (125 mm)
These instruments are built in conformity with the construction and safety specifications of ASME B40.1.
In case of leaks or break of the elastic element the operator is protected by a stainless steel safety cell solid front and by the blow-out back. They are mainly used on high pressure water jet technology like water cutting machines, hydro blasting pumps and turbines, hydrodemolition. The TIG welding between the safety cell and the process socket strengthens the instrument and assures a better tight in case of dampening fluid The advantages of filling the case of the instrument with a dampening fluid are: reduced pointer fluctuation, reduced wear of rotating parts of the movement when pulsant vibrations and pulsations occur. Moreover condensation and corrosive atmospheres which could damage the internal parts.
| Industrial sector: |
|
| Instrument type: |
- Bourdon tube pressure gauges
|
| Specific applications: |
|
| Conformity: |
|
| Accuracy: |
- Grade 1A according to ASME B40.1
|
| Material: |
- Stainless steel and special materials
|
| Range: |
- 0...30000bar/psi, 0...40000bar/psi, 0...60000bar/psi
|
| Protection degree: |
|
| Working pressure: |
|
