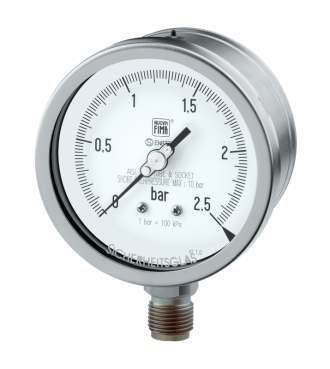

Bourdon tube "solid-front" pressure gauges HEAVY WORK DS 4", 6" (100-150mm)
These instruments are designed for use in chemical and petrochemical processing industries, and in conventional power plants.They are built to resist the most severe operating conditions created by the ambient environment and the process medium. The high strength of the sensing element makes these instrument suitable to withstand high overpressure up to 4 times the full scale value and together with the case filling, they are suitable to high dynamic pulsating pressure. An Argonarc welded case/socket strengthens the whole construction. The solid-front version of these instruments is built in accordance with safety specifications of EN 837-1 and ASME B40.1. The safety construction consists of a solid separating wall in stainless steel, placed between the dial and the elastic element and a blow out back which is released from the case whenever an internal pressure, due to leaks, is created or the elastic element is broken.
| Industrial sector: |
- Chemical, Petrochemical
- Energy
- Oil & Gas
- Engineering Procurement Construction (EPC)
- Technical gases
|
| Instrument type: |
- Bourdon tube pressure gauges
|
| Specific applications: |
- ATEX version
- OXIGEN version
- Low ambient temperature
- Vacuum
- Special overpressure
- Combined (Vacuum + Pressure)
- Vibrations
|
| Conformity: |
- EN 837 standard
- Norm ASME B40.1
- Directive PED 97/23/CE
- Directive ATEX 94/9/CE
- Gost R pattern approval
|
| Accuracy: |
|
| Function: |
|
| Material: |
|
| Range: |
- 0...1 / 0...600bar and vacuum
|
| Protection degree: |
|
| Working pressure: |
|
