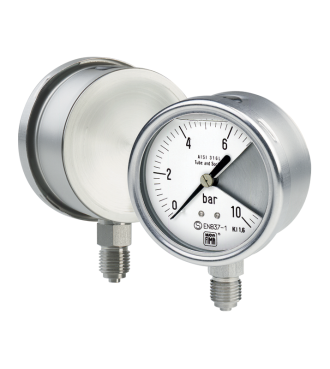

Bourdon tube "solid-front" pressure gauges all stainless steel construction DS 2.5" (63mm)
These Solid-Front instruments are built in accordance with safety specifications of EN 837-1 "S3" and ASME B40.1.
The safety construction consists of a solid separating wall in stainless steel, placed between the scale and the elastic element and a blow out back which is released from the case whenever an internal pressure, due to leaks, is created or the elastic element is broken. A leak tight fit is ensured if the instrument is filled with a dampening fluid to prevent damage due to vibration. These instruments are designed for use in chemical and petrochemical processing industries, and in conventional power plants. They are built to resist the most severe operating conditions created by the ambient environment and the process medium.
| Industrial sector: |
- Chemical, Petrochemical
- Energy
- Oil & Gas
- Machine building (OEM)
- Technical gases
|
| Instrument type: |
- Bourdon tube pressure gauges
|
| Specific applications: |
- OXIGEN version
- Fluctuating pressure
- Vacuum
- Combined (Vacuum + Pressure)
- Vibrations
|
| Conformity: |
- EN 837 standard
- Norm ASME B40.1
- Directive PED 97/23/CE
- Gost R pattern approval
|
| Accuracy: |
|
| Function: |
|
| Material: |
|
| Range: |
- 0...1 / 0...1600bar and vacuum
|
| Protection degree: |
|
| Working pressure: |
|
