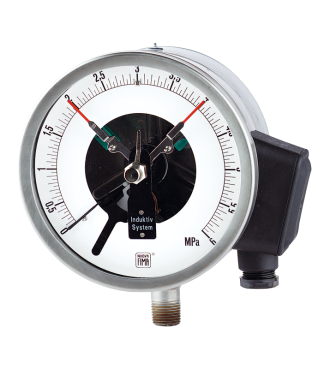

Pressure gauges with electric contacts all stainless steel construction DS 6" (150mm)
These instruments are manufactured in accordance with the safety norms prescribed by UNI 8541, DIN 16006 e ANSI B40.1. They are used to control the electrical operation of compressors, pumps, presses, hydraulic and pneumatic equipments, chemical and petrochemical plant. In the event of leakage or break of sensing element, the operator is protected by a solid baffle wall placed on the instrument front and by the rear blow out wall. The contacts open or close the circuit depending on the position of the indicating pointer and they are adjustable over the whole range. For application on severe working conditions, such as rapid and frequent pressure change, vibration and pulsation, they are manufactured with the case liquid filled. The filling drastically reduce the effects of such factors as well as those caused by the corrosive atmosphere, making longer life and better performances of the pressure gauge and their electric contacts. They are also available with inductive contacts intrinsically safe.
| Industrial sector: |
- Chemical, Petrochemical
- Energy
- Oil & Gas
- Machine building (OEM)
|
| Instrument type: |
- Bourdon tube pressure gauges
|
| Conformity: |
- EN 837 standard
- Directive PED 97/23/CE
- Directive BT 2006/95/CE
- Gost R pattern approval
|
| Function: |
|
| Specific applications: |
- Fluctuating pressure
- Vibrations
|
| Accuracy: |
- 1,0 according to DIN 16085
|
| Material: |
|
| Range: |
|
| Protection degree: |
|
| Electrical switching: |
- sliding contact, magnetic snap-action, inductive - intervention: 1...2
|
| Working pressure: |
|
