Tilt Switch
The main purpose of Tilt Switch Probes is an electro-mechanical inclination switch used for spot detection and detection of feed loss in conveyor belts to control the absence or density of bulk material during flow of flowable materials. Probe option consists of two different models, the SS model stainless steel body with the other CB model is used in complete casting and heavy-duty conditions are used. If desired, it can be used with the help of a control unit or can be integrated directly into the system.
Prob İnformation
| Model No. |
Explanation |
Inclination Angle |
Length (mm) |
Diameter of Prob (mm) |
Weight (Kg) |

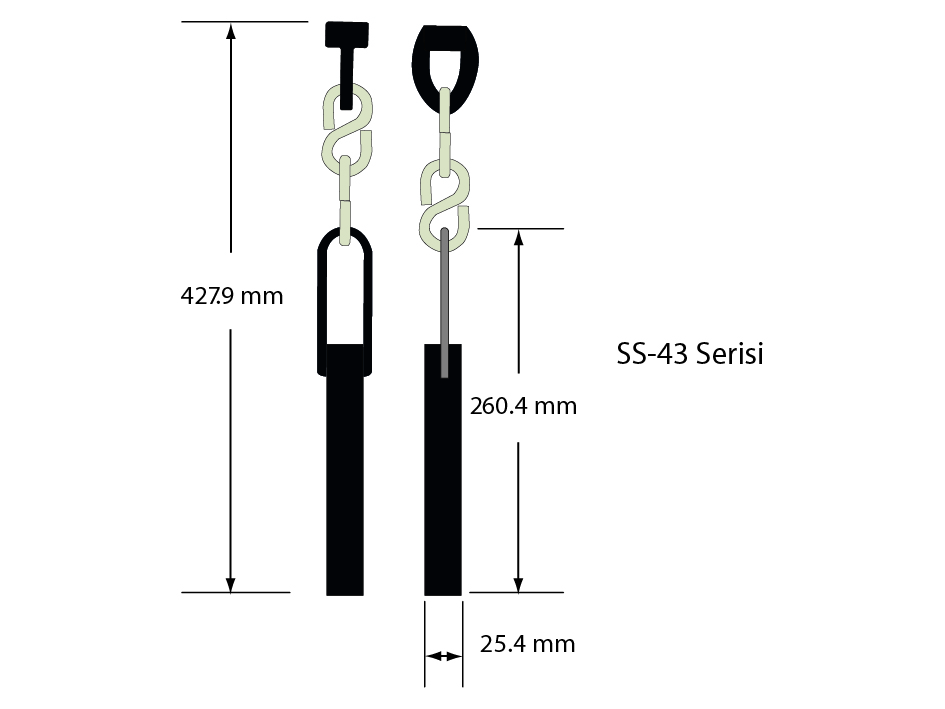

| SS-43 |
Stainless Steel Body |
360 ̊ de 20 ̊ |
255 |
25,4 |
0,45 |
| SS-43HT |
Stainless Steel Body High Temperature |
360 ̊ de 20 ̊ |
255 |
25,4 |
0,45 |

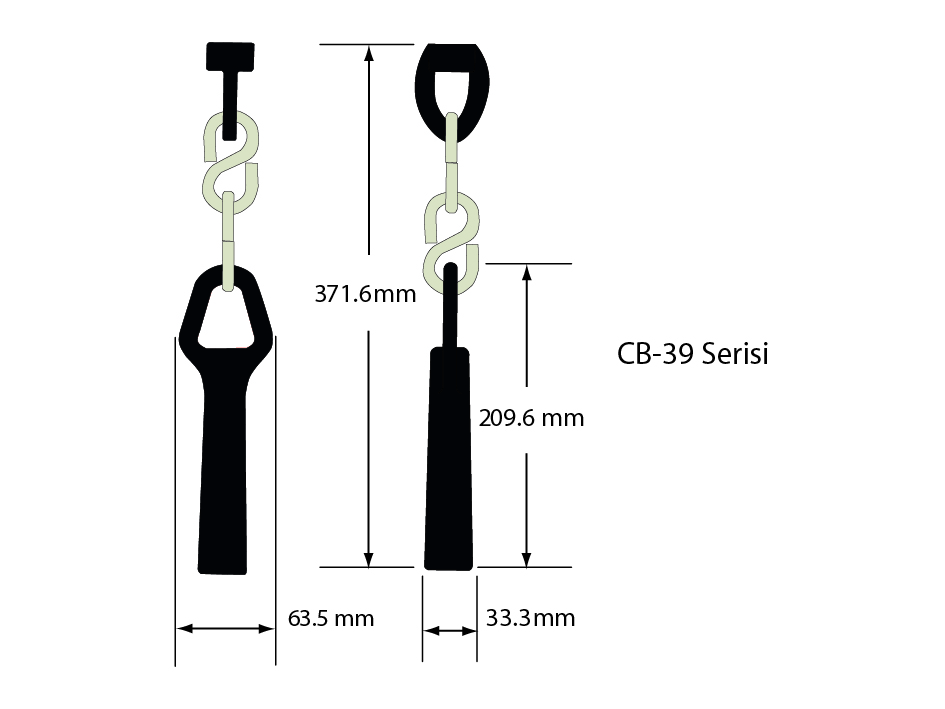

| CB-39 |
Body Casting |
360 ̊ de 20 ̊ |
209 |
33,3 |
0,65 |
| CB-39HT |
Body Complex Casting Body High Temperature |
360 ̊ de 20 ̊ |
209 |
33,3 |
0,65 |
Technicial Specifications
| Model |
Ignition Values |
Protection |
Connection material |
Certificate |
Ex |
| SS-43 |
12,5A - 120VAC / 5 ohm |
IP68 |
S Kanca |
CE |
waiting for approval |
| SS-43HT |
12,5A - 120VAC / 5 ohm |
IP68 |
S Kanca |
CE |
waiting for approval |
| CB-39 |
12,5A - 120VAC / 5 ohm |
IP68 |
S Kanca / Zincir |
CE |
waiting for approval |
| CB-39HT |
12,5A - 120VAC / 5 ohm |
IP68 |
S Kanca / Zincir |
CE |
waiting for approval |
* Standard cable length is 3mt.
Application Types
Control Panel Technical Specifications
| Login |
All models |
115/230 VAC, 50/60 HZ |
| Alarm Contact |
KT20-P
KT25-DIN
|
(2) SPDT—10 Amp@115/230 VAC, 7 Amp@30 VDC non-inductive
(1) NO—2 Amp@115/230 VAC, 3 Amp@24VDC
|
| Fault contact |
All models |
(1) NO—rated for 2 Amp@115/230 VAC@24VDC |
| Delay Time |
All models |
1, 2, 4, or 6 seconds selectable by jumpers |
| Temperature |
All models |
-40°C (-40°F) to +50°C (+122°F) |
| Protection |
20-35-NM-F
20-35-NM-DIN
|
IP65 (NEMA 4)
IP20 (NEMA 1)
|
| Certificate |
All models |
CE |
| Use of Dangerous Region |
waiting for approval |
|
Properties
• All probe models are weatherproof, dustproof and waterproof
• For applications where space is limited and standard, a compact probe should be used,
• For applications where the wear-resistant probe is applied, a heavy probe should be used.
• Simple Assembly and Installation
• Lower costs
Usage areas
• High level signal for silos and feed hoppers.
• High level signal for masonry.
• Blocking agent in loading / unloading areas of conveyor belts
• Control of the lack of material on the tape
