Mercotac 331 - 3 Conductor 2x4A & 1x30A

Mercotac Model 331

- Brushless transmission technology
- Easy assembly and care unrequired body
- Data and/or  power transmission
- Small sized and pretty light body
- More than 1 billion rotations long use duration
- Electrical parasites are such tiny that can be ignored, noiseless running
- Made in USA.

Model

Features

331

Standart Model

331-SS

Stainless Steel Housing

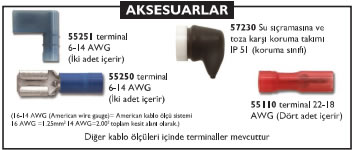

  Suggested Auxiliary Connection Equipment

Model

Features

57230

Protection Kit Against Dust and Water Leaps, IP51

55251

Statical Part Cable Connection Terminal (16 - 14 AWG) with Model 331, 2 Pieces are Supplied Free.

55250

Moving Part Cable Connection Terminal (16 - 14 AWG) with Model 331, 2 Pieces are Supplied Free.

55110

For Both Parts Cable Connection Terminal (22– 18 AWG) with Model 331, 4 Pieces are Supplied Free.

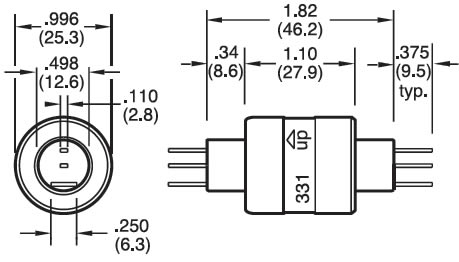

Mercotac Slip Rings Model 331 - 3 Conductor 2x4 Amper 1x30 Amper

- Maximum Operating Voltage: 250V AC/DC
- Maximum Continious Operating Current (240V AC): 2 Conductor 4 Amper 1 Conductor 30 Amper
- Maximum  Frequency: 100 MHz
- Outer Diameter: 25,3mm
- Operating Temperature: Model 331 Max. F (C) 140(60)/ Min. F (C) -20(-29)



Mercotac Slip Rings Model 331 - 3 Conductor 2x4 Amper 1x30 Amper

Suggested Mounting Methods
Model 331 is typically mounted by either the black body or the white plastic bushing on either end using a set screw.  When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Installation Notes:
the up arrow should not point below horizontal
do not solder to or bend connector tabs
avoid lateral forces and mechanical loads (overly stiff or tight wires)
do not rigid mount both ends of connector
limit mounting eccentricity (runout / wobble) to .005" (.13mm)
provide overload protection within the circuit
avoid vibration and bumping motions
