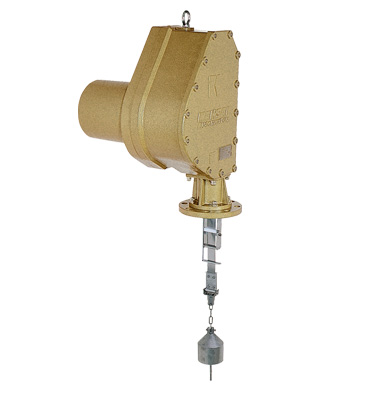

KSL-GT Rugged Withstand-pressure Explosion-proof

KSL-GT Rugged Withstand-pressure Explosion-proof
Flame proof model is available in the hazardous area.
Measurement range 20m as standard, up to 40m as option.
To connect the unit to electronic counter or analog indicator, option parts such as control unit or P/I converter are required.

Model

KSL-T8

KSL-T2

Power Voltage

100VAC or 200VAC, Single-phase 50/60Hz

100VAC or 200VAC, Single-phase 50/60Hz

Consumption

Max.150VA

Max.150VA

Allowable Temperature

ambient : -10℃~+50℃
(No freezing/condensation)
Inside tank : -10℃~+80℃
(No freezing/condensation)

ambient : -10℃~+50℃
(No freezing/condensation)
Inside tank : -10℃~+80℃
(No freezing/condensation)

Measuring Span

Standard 20m
(40m Option)

Standard 20m
(40m Option)

Measuring Method

Pulse Counting

Pulse Counting

Measuring Unit

1 pulse/10cm,
or 1 pulse/1cm

1 pulse/10cm

Measuring Accuracy

±1cm / ±10cm

±10cm

Motor

Single-phase, Reversible,
Output 40W
30 minutes rating, with brake

Single-phase, Reversible,
Output 40W
30 minutes rating, with brake

Body material

AC

SPC

Mounting Method

JIS 5K125A

JIS10K100A

Enclosure Rating

IP67

Equivalent to IP33

Output Signal

Current signal
DC4~20mA(indicate remains)
DC20~4mA(indicate vacated portion)
(User can set up either one)
Pulse contact signal
1 pulse / 1cm
(No-volt signal)
1pulse / 10cm
(User can set up either one)

Possible to control 4-20mA output by combining an optional control unit and P / I converter.

Output Contact

Reset Contact/
for Remote Indication Counter,
ON at the time of reset
Failure Alarm Contact/
Flickers when the measuring
tape is cut off.
The contact is closed when
the weight is buried.

Possible to control both upper and lower output by combining an optional control unit and P / I converter.
