Speed Detector KPS Series

Click to reach us online

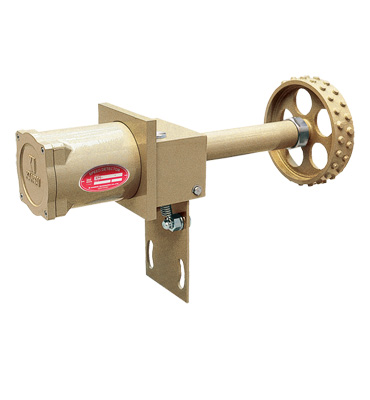

KPS-123/124 Touch Roller Type

KPS-123/124 Touch Roller Type
The length of whole sensor part 300mm or 450mm.
Detects the speed of conveyor belt directly. Belt speed change is trustfully measurable.
Operation speed setting range 3～1999rpm.
Quick response. Output signal time lag only 5 sec.

Model

KPS Series

Power Source

105/210VAC ±10% 50/60Hz

Power Consumption

2.5VA

Output Contact

SPDTx1

Contact Capacity

AC250V 5A、DC30V 5A

Temperature

-10℃～+60℃

Permissible Speed

below 2000rpm

Setting Range

3～1999rpm

Measurement Error

2rpm

Start-up Compensation Timer

0～99seconds

Temperature

-10℃～+60℃

Enclosure Rating

Equivalent to IP55
KPS-123/124 Touch Roller Type

Operating Principles

An electrical signal is sent from the built-in photo sensor through the rotation of the cam installed on the shaft or from the built-in proximity sensor through the rotation of the metal piece installed on the mechanical unit. By counting this electrical signal for a given length of time, the shaft rotation speed is detected as the rotation speed per minute. The contact output is executed when the rotation speed reaches below the preset speed.
