The tow ropes are used in conveyor belt systems to control the switches
- All connectors are designed for the KBT safety switch connection.
- Within the European Union, these conditions are produced mainly DIN EN ISO 13850 EN l IEC 60 947-5-5 ve EN 620.
- The products are made of stainless steel and galvanized materials and are suitable for use in heavy industry.
- Please use the recommended accessories when connecting the KBT switches.

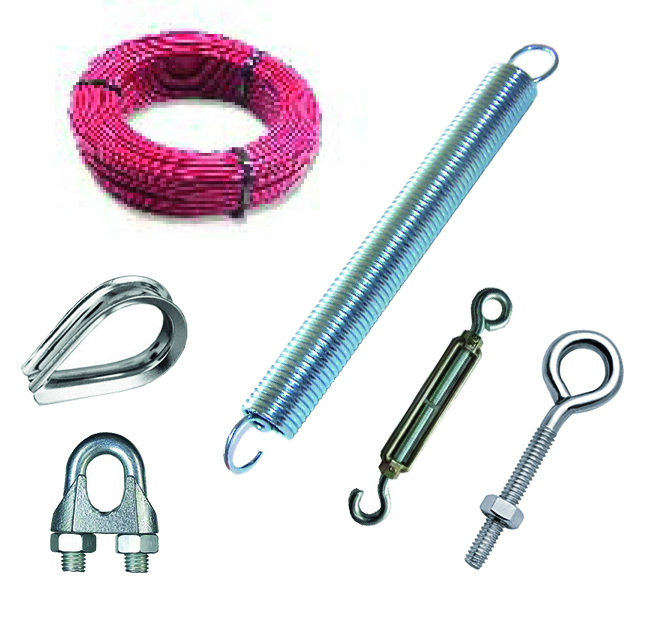

Connection equipments
| Product |
Explanation |
Order code |
| Steel rope |
3mm steel rope 2mm in total, including 5mm steel rope. |
SR-050-03 |
| Steel rope |
total of 6mm steel rope with 4mm steel rope and 2mm isolated section. |
SR-060-03 |
|
EyeHook
Rigging screws Galvanise
|
Eye and hook structure is made of galvanized lt is used in the connection point of steel rope. |
GK-10mm |
|
Pull cord Switch
Tension Spring (Stainless)
|
Made of stainless steel, This spring draw steel rope and it uses during assembly.
|
NB-055 |
| Rope Connection Accessory Klemens |
Made of galvanized material.This product steel rope is other equipment or for to chassis assemble.
|
ZB-216 |
|
Pull cord Switch
Taşıma Kancası (Paslanmaz)
|
The product's rope which is stainless steel, uses to put it on parallel suspense. lt can be used as connection accessory on connection points. lt has MIO ring gear.
|
KN-013 |
| Rope Eyelet (Galvanized) |
5mm bearing distance galvanized material is used to prevent the breaking of steel rope.
|
RB-050 |
| Rope Eyelet (Galvanized) |
5mm bearing distance galvanized material is used to prevent the breaking of steel rope.
|
RB-060 |
| Product |
Explanation |
Order code |
| Connection Set |
1This is a set of all the apparatuses required for the installation of a rope-cut switch.
Connection Set
l Piece : Spring (NB-055)
l Piece :Pul1 Cord Switch Carrying Hook (Stainless) (KN-013) l Piece Eye Hook Rigging Screws galvanise (Gk-10mm)
2 Piece : Redans (RB-050)
2 Piece : Klemens (ZB-216)
|
YX19 |
Note : All products are used to assemble the wire rope and rope emergency stop switch in the conveyor belt line. Installation may vary according to user preference.
