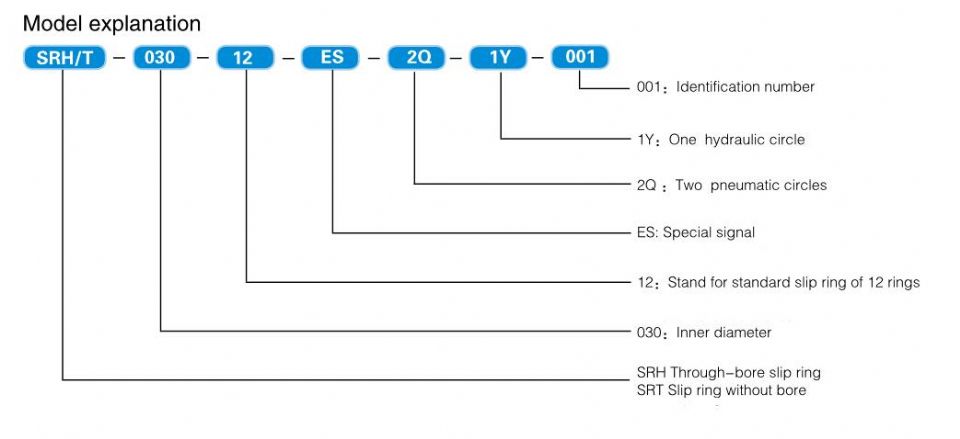

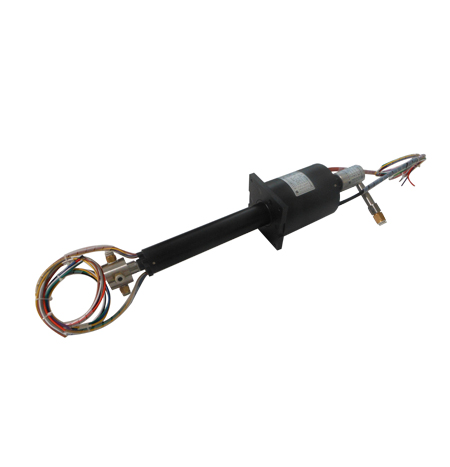

SRT038F1-12-1Q

Features

  • Combine the pneumatic hydraulic rotary joint with electric slip rings
  • Circuit number from 2-350
  • Operation speed: standard up to 250rpm
  • Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
  • Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
  • Flexible, color-coded, silver-plated, Teflon® insulated lead wires
  • Contact material silver to silver coating
  • Standard wire leads length is 500mm
  • Standard temperature is -20°C to +80°C
  • Insulation strength 500V AC@50HZ 60S
  • Insulation resistant  500MΩ 500VDC
  • Long life cycles up to 80 million cycles
  • Protection grade IP 51, IP54, IP 65
  • Ethernet circuits can transmission 100Mbps, 1Giga data.

Optional

  • Material AL or SS
  • Flange mounted
  • Rotary speed
  • Air or liquid pressure
SRT038F1-12-1Q
