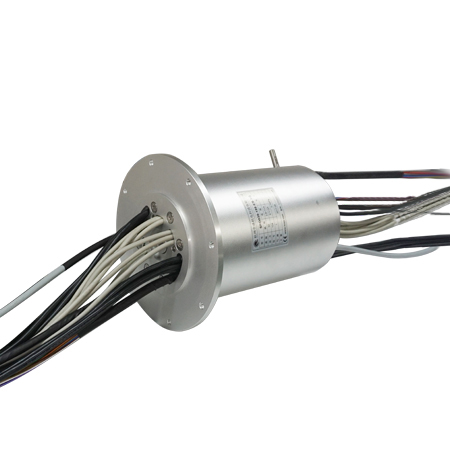

SRD038-156-ES-1Q

Features

  • Through bore size 3mm to 500mm
  • Circuit number from 2-350
  • Operation speed: standard up to 250rpm
  • Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
  • Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
  • Standard housing is ABS material up to bore size60mm , AL housing offered the bore size bigger than 70mm
  • Flexible, color-coded, silver-plated, Teflon® insulated lead wires
  • Contact material silver to silver coating
  • Standard wire leads length is 500mm
  • Standard temperature is -20°C to +80°C
  • Insulation strength 500V AC@50HZ 60S
  • Insulation resistant  500MΩ 500VDC
  • Long life cycles up to 80 million cycles
  • Protection grade IP 51, IP54, IP 65
  • Ethernet circuits can transmission 100Mbps, 1Giga data.
  • Cable gland exit

Options

  • Bore size
  • Circuit number
  • Current
  • Operation speed up to 3000rpm
  • IP grade
  • Slip ring structure material, AL, SS
  • Wire lead length, direction, position
SRD038-156-ES-1Q
