Moflon MT210 - Delikli Slip Ring
İç çap : 210mm(8.27") Dış Çap : 320mm(12.6")
MT210 serisi standart, satışa hazır ürünler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar, statorda ve rotorda kullanılır. Hidrolik veya pnömatik hatların yönlendirilmesi, hidrolik veya pnömatik döner şaft kurulumu için 210mm(8.27") iç çap ve kompakt 320mm dış çap sağlanmıştır. Uzun ömürlü ve birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisine sahiptir.
Standart seri PARÇA# Açıklaması:
MT21018 - 06 12
| Specifications |
| Rings |
3~72(see table as below) |
Current |
Signal(2A) or 10A |
| Voltage |
600 VDC/VAC |
Max speed |
50RPM |
| Through bore size |
210mm(8.27") |
Overall diameter |
320mm(12.6") |
| Housing Material |
Aluminium Alloy |
Torque |
1.5N.m;+0.5N.m/6rings |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<10mOhm |
Contact Resistance |
< 5mOhm |
| Dielectric strength |
1000VDC@50Hz |
Lead Wire |
UL Teflon® Awg22,Awg16 |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
300mm(12") |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 85% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES
|
| MT21002(Total Rings=2, Length=87mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21002-0200 |
2 |
0 |
MT21002-0002 |
0 |
2 |
| MT21003(Total Rings=3, Length=93mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21003-0300 |
3 |
0 |
MT21003-0003 |
0 |
3 |
| MT21003-0102 |
1 |
2 |
MT21003-0201 |
2 |
1 |
| MT21006(Total Rings=6, Length=111mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21006-0600 |
6 |
0 |
MT21006-0006 |
0 |
6 |
| MT21006-0204 |
2 |
4 |
MT21006-0402 |
4 |
2 |
| MT21012(Total Rings=12, Length=147mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21012-1200 |
12 |
0 |
MT21012-0012 |
0 |
12 |
| MT21012-0210 |
2 |
10 |
MT21012-0408 |
4 |
8 |
| MT21012-0606 |
6 |
6 |
MT21012-0804 |
8 |
4 |
| MT21012-1002 |
10 |
2 |
|
|
|
| MT21018(Total Rings=18, Length=183mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21018-1800 |
18 |
0 |
MT21018-0018 |
0 |
18 |
| MT21018-0216 |
2 |
16 |
MT21018-0414 |
4 |
14 |
| MT21018-0612 |
6 |
12 |
MT21018-0810 |
8 |
10 |
| MT21018-1008 |
10 |
8 |
MT21018-1206 |
12 |
6 |
| MT21018-1404 |
14 |
4 |
MT21018-1602 |
16 |
2 |
| MT21024(Total Rings=24, Length=219mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21024-2400 |
24 |
0 |
MT21024-0024 |
0 |
24 |
| MT21024-0618 |
6 |
18 |
MT21024-1212 |
12 |
12 |
| MT21024-1806 |
18 |
6 |
|
|
|
| MT21036(Total Rings=36, Length=291mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21036-3600 |
36 |
0 |
MT21036-0036 |
0 |
36 |
| MT21036-0630 |
6 |
30 |
MT21036-1224 |
12 |
24 |
| MT21036-1818 |
18 |
18 |
MT21036-2412 |
24 |
12 |
| MT21036-3006 |
30 |
6 |
|
|
|
| MT21048(Total Rings=48, Length=363mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21048-4800 |
48 |
0 |
MT21048-0048 |
0 |
48 |
| MT21048-0642 |
6 |
42 |
MT21048-1236 |
12 |
36 |
| MT21048-1830 |
18 |
30 |
MT21048-2424 |
24 |
24 |
| MT21048-3018 |
30 |
18 |
MT21048-3612 |
36 |
12 |
| MT21048-4206 |
42 |
6 |
|
|
|
| MT21056(Total Rings=56, Length=411mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21056-5600 |
56 |
0 |
MT21056-0056 |
0 |
56 |
| MT21056-0650 |
6 |
50 |
MT21056-1244 |
12 |
44 |
| MT21056-1838 |
18 |
38 |
MT21056-2432 |
24 |
32 |
| MT21056-3620 |
36 |
20 |
MT21056-4808 |
48 |
8 |
| MT21072(Total Rings=72, Length=507mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MT21072-7200 |
72 |
0 |
MT21072-0072 |
0 |
72 |
| MT21072-1260 |
12 |
60 |
MT21072-2448 |
24 |
48 |
| MT21072-3042 |
30 |
42 |
MT21072-3636 |
36 |
36 |
| MT21072-4824 |
48 |
24 |
MT21072-6012 |
60 |
12 |

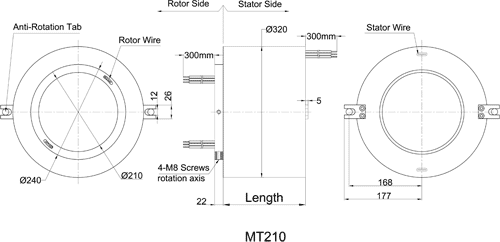

Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
