MT070

Moflon MT070 - Delikli Slip Ring
İç çap : 70mm(2.76") Dış Çap : 140mm(5.51")
MT070 serisi standart, satışa hazır ürünler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar, statorda ve rotorda kullanılır. Hidrolik veya pnömatik hatların yönlendirilmesi, hidrolik veya pnömatik döner şaft kurulumu için 70mm(2.76") iç çap ve kompakt 140mm dış çap sağlanmıştır. Uzun ömürlü ve birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisine sahiptir.

Standart seri PARÇA# Açıklaması:

MT07018 -  06   12

MT070

Specifications
Rings 3~96(see table as below) Current Signal(2A) or 10A
Voltage 600 VDC/VAC Max speed 500RPM
Through bore size 70mm(2.76") Overall diameter 140mm(5.51")
Housing Material Aluminium Alloy Torque 0.08N.m;+0.03N.m/6rings
Working life depends on working speed Contact material Precious Metal:Gold-Gold
Electrical noise <10 mOhm Contact Resistance <2 mOhm
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg22,Awg16
Insulation resistance 1000MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP51
Mechanical vibratio MIL-SID-810E Humidity 10% to 85% RH
Materials Lead Free,RoHS compliant CE Certified YES





MT07002(Total Rings=2, Length=42mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07002-0200 2 0 MT07002-0002 0 2
MT07003(Total Rings=3, Length=46mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07003-0300 3 0 MT07003-0003 0 3
MT07003-0102 1 2 MT07003-0201 2 1
MT07006(Total Rings=6, Length=58mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07006-0600 6 0 MT07006-0006 0 6
MT07006-0204 2 4 MT07006-0402 4 2
MT07012(Total Rings=12, Length=82mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07012-1200 12 0 MT07012-0012 0 12
MT07012-0210 2 10 MT07012-0408 4 8
MT07012-0606 6 6 MT07012-0804 8 4
MT07012-1002 10 2
MT07018(Total Rings=18, Length=106mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07018-1800 18 0 MT07018-0018 0 18
MT07018-0216 2 16 MT07018-0414 4 14
MT07018-0612 6 12 MT07018-0810 8 10
MT07018-1008 10 8 MT07018-1206 12 6
MT07018-1404 14 4 MT07018-1602 16 2
MT07024(Total Rings=24, Length=130mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07024-2400 24 0 MT07024-0024 0 24
MT07024-0618 6 18 MT07024-1212 12 12
MT07024-1806 18 6
MT07030(Total Rings=30, Length=154mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07030-3000 30 0 MT07030-0030 0 30
MT07030-0624 6 24 MT07030-1218 12 18
MT07030-1812 18 12 MT07030-2406 24 6
MT07036(Total Rings=36, Length=178mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07036-3600 36 0 MT07036-0036 0 36
MT07036-0630 6 30 MT07036-1224 12 24
MT07036-1818 18 18 MT07036-2412 24 12
MT07036-3006 30 6
MT07042(Total Rings=42, Length=202mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07042-4200 42 0 MT07042-0042 0 42
MT07042-0636 6 36 MT07042-1230 12 30
MT07042-1824 18 24 MT07042-2418 24 18
MT07042-3012 30 12 MT07042-3606 36 6
MT07048(Total Rings=48, Length=226mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07048-4800 48 0 MT07048-0048 0 48
MT07048-0642 6 42 MT07048-1236 12 36
MT07048-1830 18 30 MT07048-2424 24 24
MT07048-3018 30 18 MT07048-3612 36 12
MT07048-4206 42 6
MT07056(Total Rings=56, Length=258mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07056-5600 56 0 MT07056-0056 0 56
MT07056-0650 6 50 MT07056-1244 12 44
MT07056-1838 18 38 MT07056-2432 24 32
MT07056-3620 36 20 MT07056-4808 48 8
MT07072(Total Rings=72, Length=322mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07072-7200 72 0 MT07072-0072 0 72
MT07072-1260 12 60 MT07072-2448 24 48
MT07072-3042 30 42 MT07072-3636 36 36
MT07072-4824 48 24 MT07072-6012 60 12
MT07096(Total Rings=96, Length=418mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MT07096-9600 96 0 MT07096-0096 0 96
MT07096-1284 12 84 MT07096-2472 24 72
MT07096-3660 36 60 MT07096-4848 48 48
MT07096-6036 60 36 MT07096-7224 72 24

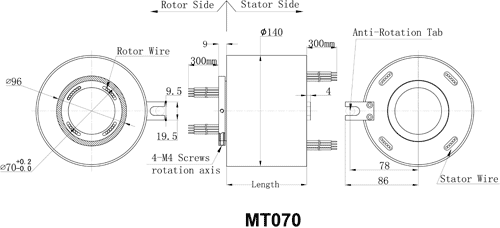

Standard drawings:

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

Lead wire Color codes
Rings# Color Code Rings# Color Code Rings# Color Code
1 BLK 5 YEL 9 GRY
2 BRN 6 GRN 10 WHT
3 RED 7 BLU 11 PINK
4 ORN 8 PURPLE 12 AZURY




  • If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!

  • Optional flange mounting.
  • Specified the wire exit direction.
  • Can combine more wires:1-120Ring
  • Specified connectors and Heat-shrink tube.
  • Longer lead lengths available.
  • Shielded cables
  • Connectors
  • Environmentally Sealed up to IP68@4Mpa
  • Frequencies up to 500 MHz
  • High-speed data transmission for fast Ethernet and EtherCat
  • Signal, Coax, and Power combinations
  • High Speed up to 20,000 rpm
  • Thermocouples
  • Shock, Vibration, and Temperature Qualified
  • Pneumatic/Hydraulic Capability
  • High temperature---up to 450 degree
  • High Voltage & large Current(1000A)
  • IP65,IP68 are avialable.
  • Military Grade.

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.


Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure





Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

MOFLON supply build-on-request service base on MT070 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.

Now, Let's start - how to build on request?
Customized Order Instructions:


MT070


  • Build-On-Request Flowing:
