MRT075A - Vinç Slip Rings
Dış Çap 75mm, Entegre Edilmiş Konnektörler
MRT075A serisi zorlu ortamlar için tasarlanmıştır, her iki yanda konnektörler entegre edilmiştir, standarttırlar, satışa hazır ürünlerdir,  basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır. Uzun, ömürlüdür, fiber fırça kontak teknolojisi birçok zorlu uygulamada en üst düzey performans için mevcuttur.

Rings 2~42(see table as below) Current 0~10A
Voltage 600 VDC/VAC Max speed 600RPM
Housing Material Stainless Steel Torque 0.1N.m;+0.03N.m/6rings
Working life depends on working speed Contact material Precious Metal:Gold-Gold
Electrical noise <5 mOhm Contact Resistance <2mOhm
Dielectric strength 1000VDC@50Hz Lead Wire N-Pin connectors
Insulation resistance 1000MΩ@600VDC Lead Lengths --
Operating Temp. -40°C to 80°C Protection IP65(IP68 on Request)
Mechanical vibratio MIL-SID-810E Humidity 10% to 85% RH
Materials Lead Free,RoHS compliant CE Certified YES
Parts# Rings Current/Ring Voltage L
MRT075A-06 6 Rings 0~10A 0~600V 45mm
MRT075A-12 12 Rings 0~10A 0~600V 65.5mm
MRT075A-18 18 Rings 0~10A 0~600V 86mm
MRT075A-24 24 Rings 0~10A 0~600V 106.5mm
MRT075A-30 30 Rings 0~10A 0~600V 126mm
MRT075A-36 36 Rings 0~10A 0~600V 147mm
MRT075A-42 42 Rings 0~10A 0~600V 168mm

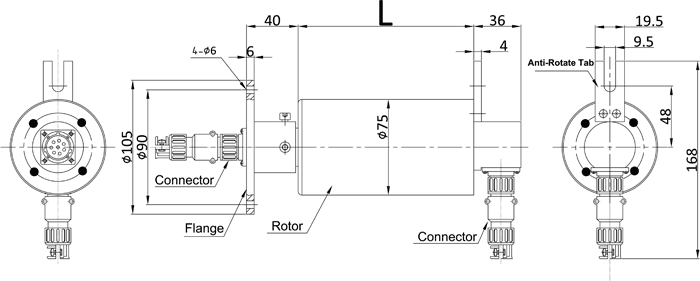

Standard drawings:

  • If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
  • Optional flange mounting.
  • Specified the wire exit direction.
  • Can combine more wires:1-120Ring
  • Specified connectors and Heat-shrink tube.
  • Longer lead lengths available.
  • Shielded cables
  • Connectors
  • Environmentally Sealed up to IP68@4Mpa
  • Frequencies up to 500 MHz
  • High-speed data transmission for fast Ethernet and EtherCat
  • Signal, Coax, and Power combinations
  • High Speed up to 20,000 rpm
  • Thermocouples
  • Shock, Vibration, and Temperature Qualified
  • Pneumatic/Hydraulic Capability
  • High temperature---up to 450 degree
  • High Voltage & large Current(1000A)
  • IP65,IP68 are avialable.
  • Military Grade.

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure

 Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

MOFLON supply build-on-request service base on MRT075A series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.

Now, Let's start - how to build on request?
Customized Order Instructions:


  • Build-On-Request Flowing:
