MFO208 - Fiber Optik Slip Rings
MFO208 is 2 channel FORJ mixed with electric wires, max 72 wires, are standard,ready available slip ring solution.
Use gold contacts at the rotary interface for signal rings, and 2 channel Fiber optic rotary joints for large amount data transmitting.
can combine with Large current, Thermocouples,Ethernet,Coaxial(RF),USB on request.
| PART # |
WAVELENGTH |
CHANNEL |
2A/SIGNAL |
10A |
LENGTH |
| MFO208-S06 |
650nm~1310nm |
2 channel MM |
6 |
0 |
200 |
| MFO208-P0610 |
650nm~1310nm |
2 channel MM |
0 |
6 |
200 |
| MFO208-S12 |
650nm~1310nm |
2 channel MM |
12 |
0 |
200 |
| MFO208-P1210 |
650nm~1310nm |
2 channel MM |
0 |
12 |
200 |
| MFO208-P0610-S06 |
650nm~1310nm |
2 channel MM |
6 |
6 |
200 |
| MFO208-S18 |
650nm~1310nm |
2 channel MM |
18 |
0 |
200 |
| MFO208-P1810 |
650nm~1310nm |
2 channel MM |
0 |
18 |
200 |
| MFO208-S24 |
650nm~1310nm |
2 channel MM |
24 |
0 |
200 |
| Electric Specifications |
| Rating voltage |
600 VDC/VAC |
Contact material |
Precious Metal:Gold-Gold |
| Dielectric strength |
600VDC@50Hz |
Lead Wire |
UL Teflon® |
| Insulation resistance |
1000MΩ@500VDC |
Lead Lengths |
250mm |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 90% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |
| FORJ Specifications |
| Wavelength |
650nm~1310nm |
Insertion loss |
<2.5dB (normal: <0.8dB) |
| Insertion loss ripple |
<+/-0.25 dB |
Return loss (MM) |
>30 dB(RFC/RST) |
| Maximum speed |
250 RPM |
Pressure compensation |
1000 psi |
| Pulling strength. |
10N |
Start up torque |
0.1N/m |
| Estimated life cycle |
300 million |
Optical power handling |
23 dBm |
| Working temperature |
-40 to 85 °C |
Storage temperature |
-50 to 85 °C |
| Package style |
Pigtail or receptacles |
Housing materia |
Stainless steel |
| Fiber types |
Support MM |
Connector |
FC |
| IP rating |
IP 68 |
Weight |
50g |
| Lead length |
1000mm |
|
|
|
Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.
|

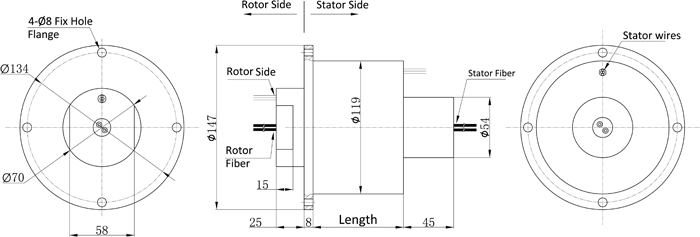

Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
- Optional flange mounting.
- Specified the wire exit direction.
- Can combine more electric wires:1-72Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables
- Connectors
- Environmentally Sealed up to IP68@4Mpa
- Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- High Speed up to 20,000 rpm
- Thermocouples
- Shock, Vibration, and Temperature Qualified
- Pneumatic/Hydraulic Capability
- High temperature---up to 450 degree
- High Voltage & large Current(1000A)
- IP65,IP68 are avialable.
- Military Grade.
Flange Mounting Instructions
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure
Shaft Mounting Instructions(For Through bore style)
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).
2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
Build On Your Request/Special requirements
when we cann't find any one of standard part# to fit our application, what should we do?
Great! Moflon supply build-on-request service base on MFO208 series, the delivery time of build-on-request is 2~3 weeks,and price is only 20%~50% more than the standard version.
Now, Let's start - how to build on request?
Please see ordering information instructions as below:
MFO208
Build-On-Request Flowing:
