MFO102 - Fiber Optik Slip Rings
MFO102 combine 1channel FORJ with max 12 wires signal,are standard, off-the-shelf. Has compact body only OD 25mm,Specially designed for CCTV.
Use gold contacts at the rotary interface for signal rings, and 1 channel Fiber optic rotary joints for large amount data transmitting.
| PART # |
WAVELENGTH |
CHANNEL |
2A/SIGNAL |
MAX SPEED |
CONNECTORS |
| MFO102-12 |
650nm~1550nm |
1 channel SM/MM |
12 |
250RPM |
FC |
| MFO102-24 |
650nm~1550nm |
1 channel SM/MM |
24 |
250RPM |
FC |
| Electric Specifications |
| Rating voltage |
210 VDC / 240 VAC |
Contact material |
Precious Metal:Gold-Gold |
| Dielectric strength |
600VDC@50Hz |
Lead Wire |
UL Teflon® Awg28 |
| Insulation resistance |
1000MΩ@500VDC |
Lead Lengths |
250mm |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 90% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |
| FORJ Specifications |
| Wavelength |
650nm~1550nm |
Insertion loss |
<2.5dB (normal: <0.8dB) |
| Insertion loss ripple |
<+/-0.25 dB |
Return loss (SM/MM) |
>30 dB(RFC/RST) |
| Maximum speed |
250 RPM |
Pressure compensation |
1000 psi |
| Pulling strength. |
10N |
Start up torque |
0.1N/m |
| Estimated life cycle |
300 million |
Optical power handling |
23 dBm |
| Working temperature |
-40 to 85 °C |
Storage temperature |
-50 to 85 °C |
| Package style |
Pigtail or receptacles |
Housing materia |
Stainless steel |
| Fiber types |
Support both SM/MM |
Connector |
FC |
| IP rating |
IP 68 |
Weight |
50g |
| Lead length |
1000mm |
|
Standard drawings:

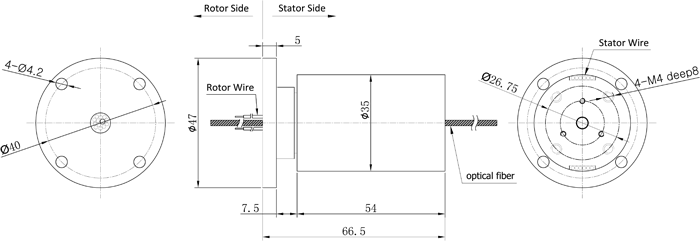

MFO102-12 drawings

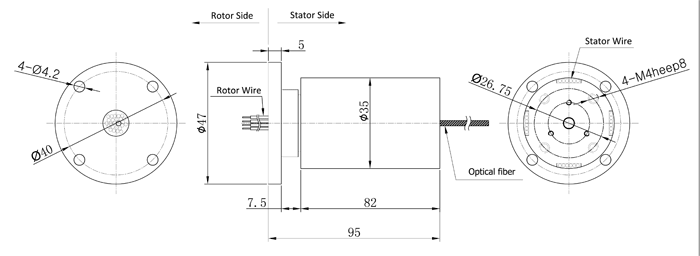

MFO102-24 drawings
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
Build On Your Request/Special requirements
when we cann't find any one of standard part# to fit our application, what should we do?
Great! Moflon supply build-on-request service base on MFO102 series, the delivery time of build-on-request is 2~3 weeks,and price is only 20%~50% more than the standard version.
Now, Let's start - how to build on request?
Please see ordering information instructions as below:
MFO102
Build-On-Request Flowing:
Flange Mounting Instructions
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure
Shaft Mounting Instructions(For Through bore style)
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).
2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
ypical Application
- between in undersea robot and control ship.
- between in radar antenna and on-board signal processing system.
- with the chariot rotating tower car body console.
- between in welding robot and console.
