Mercotac 105 - 1 Conductor 4A

Mercotac Model 105

- Brushless transmission technology
- Easy assembly and care unrequired body
- Data and/or  power transmission
- Small sized and pretty light body
- More than 1 billion rotations long use duration
- Electrical parasites are such tiny that can be ignored, noiseless running
- Made in USA



Model

Features

105

Standart Model

105-SS

                                             Stainless Steel Housing

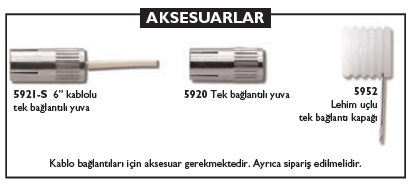

     Suggested Auxiliary Connection Equipment

Model

Features

5920

Auxiliary Connection Equipment

5921-S

 15 cm Wired Auxiliary Connection Equipment

5952

Solder Tipped Connection Equipment for Static Side Connection



MODEL 105 & 110-T , 1 iletken, 4 ve10 AmperMODEL 105 & 110-T, 1 iletken, 4 ve 10 AmperMODEL 105 & 110-T, 1 iletken, 4 ve 10 Amper
Mercotac Slip Rings Model 105 - 1 Connector 4 Amper

- Maximum Operating Voltage: 250V AC/DC
- Maximum Continious Operating Current (240V AC): 4 Amper
- Maximum Frequency: 200 MHz

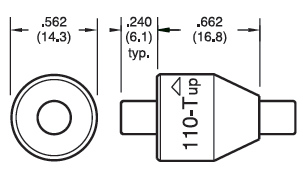

- Outer Diameter: 14,3mm
- Operating Temparature: Max. F (C) 212 (100)/ Min. F (C) 45(7)
- Weight: - gr


Mercotac Slip Rings Model 105 - 1 Connector 4 Amper

Suggested Mounting Methods
Model 110-T is typically mounted by the knurled metal receptacle, which is press-fit into the rotating member of the machine  When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Installation Notes:
the up arrow should not point below horizontal
do not solder to or bend connector tabs
avoid lateral forces and mechanical loads (overly stiff or tight wires)
do not rigid mount both ends of connector
limit mounting eccentricity (runout / wobble) to .005" (.13mm)
provide overload protection within the circuit
avoid vibration and bumping motions
