ME2502 - Ethernet / Gigabit Bağlantı Slip Rings
2 kanal 1000M Ethernet + 1~20 devre güç /sinyal
ME2502; 2 kanal 1000M baseT ethernet destekli slip ring, iç çapı 50mm(1.97"), dış çapı 120mm, standart, satışa hazır, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır.


ME2502-S02 120mm*100mmm 2 0 0 2
ME2502-P0210 120mm*100mm 0 2 0 2
ME2502-S08 120mm*124mm 8 0 0 2
ME2502-P0810 120mm*124mm 0 8 0 2
ME2502-P0410-S04 120mm*124mm 4 4 0 2
ME2502-S14 120mm*148mm 14 0 0 2
ME2502-P0610-S08 120mm*148mm 8 6 0 2
ME2502-P1410 120mm*148mm 0 14 0 2
ME2502-S20 120mm*172mm 20 0 0 2
ME2502-P1010-S10 120mm*172mm 10 10 0 2
ME2502-P0410-S16 120mm*172mm 16 6 0 2
ME2502-P2010 120mm*172mm 0 20 0 2
Ethernet Specifications
Ethernet 1000M baseT Ethernet connectors RJ45
BER 10E-11 Insert loss 2db
Power/signal Specifications
Circuits 1~20(see table as above) Current Signal(2A),10A,Per Ring
Voltage 0~600 VDC/VAC Max speed 1000RPM
Through bore size 50.8mm(2") Overall diameter 120mm(4.72")
Housing Material Aluminium Alloy Torque 0.2N.m for 6rings,+0.03N.m/6rings
Working life depends on working speed Contact material Precious Metal:Gold-Gold
Electrical noise <5 milliohms Contact Resistance <2mOhm
Dielectric strength 1000VDC@50Hz Lead Wire CAT6,AWG#16,#22
Insulation resistance 1000MΩ@600VDC Lead Lengths 250mm(Can be Longer on Request)
Operating Temp. -40°C to 80°C Protection IP51
Mechanical vibratio MIL-SID-810E Humidity 10% to 90% RH
Materials Lead Free,RoHS compliant CE Certified YES

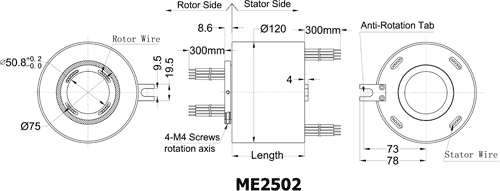

Standard drawings:

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

Lead wire Color codes
Rings# Color Code Rings# Color Code Rings# Color Code
2 BRN 6 GRN 10 WHT

Optional Flanges mounting:

At sometimes, we need a different flange for mounting instead, how should we do?
Great! Moflon supply flange style as below:

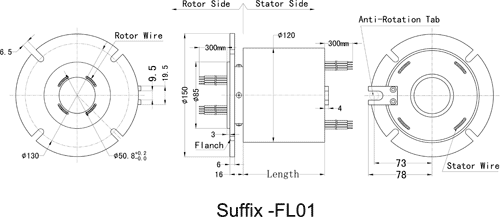

(when you order, pls add FL01 at the suffix of Part#, for example: ME2502-06S-FL01 means ME2502-06S with optional flange FL01.)


  • If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
  • Can combine more wires:1-96Ring
  • Specified connectors and Heat-shrink tube.
  • Longer lead lengths available.
  • Shielded cables
  • Connectors
  • Frequencies up to 500 MHz
  • High-speed data transmission for fast Ethernet and EtherCat
  • Signal, Coax, and Power combinations
  • Thermocouples
  • Shock, Vibration, and Temperature Qualified
  • Pneumatic/Hydraulic Capability
  • High temperature---up to 450 degree
  • High Voltage & large Current(1000A)
  • Military Grade.

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure

Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

Now, Let's start - how to build on request?

Please see ordering information instructions as below:


Build-On-Request Flowing:
