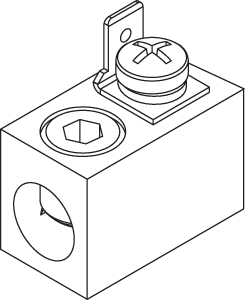

Marathon SP Power Blocks - Miscellaneous Stud Configurations
Miscellaneous power blocks are part of our traditional NEMA style offering. These power blocks provide tapped holes or quick-connects in addition to bare wire terminals to splice or distribute power.

Electrical
•    115 - 200 amps
•    600 volts AC/DC (cULus)
•    Multiple wire rating - refer to data sheets for details
Mechanical
•    Base, black thermoplastic or phenolic (see chart)
•    Insulator temp-ratings
•    Thermoplastic: 125°C (257°F) - UL RTI
•    Phenolic:150°C (302°F) - UL RTI
•    Flammability, UL 94 V-0
•    Mounting: panel mountable, 132 series is also DIN mountable
Standards
•    See datasheets for specific approvals listed
•    UL recognized file no. XCFR2.E62806 (UL 1059)
•    CSA certified file no. LR19766 (CSA C22-2 No. 158)
•    CE (Component IEC 60947-7-1)
•    RoHS compliant (all)
