Marathon SP High Voltage Power Blocks (HVPB)
The HVPB Series are HIGH VOLTAGE (1500 AC/DC) versions of our traditional power block configurations. This series consists of a modular single pole design for splicer, distribution and studded connector styles. The Mini Bulk fastening power blocks (HVPB112, HVPB114, HVPB212, HVPB214) are available in many configurations to suit individual requirements. This product is ideal for power distribution options when terminating flexible stranded wire with crimp lugs for flexible bus bar.
Electrical
• 350 - 1500 amps
• 1500 volts AC/DC (UL)
• Provides feeder circuit terminal spacing at 600V
• Flexible stranded wire compliant
• Multiple wire rating - refer to data sheets for details
Mechanical
• Base, thermoplastic
• Insulator temp-rating: 110°C (230°F) - UL RTI
• Flammability, UL 94 V-0
• Mounting: panel mountable
• Modular construction for multi-pole configurations
Standards
• See datasheets for product specific approvals listed
• UL recognized file no. XCFR2.E62806 (UL 1059)
• cUR recognized file no. XCFR8.E62806 (UL 1059)
• RoHS compliant
HIGH VOLTAGE Power Blocks (HVPB)
| Amper |
Category # |
Conn. Temp Rating |
Material |
Line Side |
Load Side |
| Insulator |
Connektor |
Wire Range
AWG / kcmil |
Connector
Openings / Pole |
Wire Range
AWG / kcmil |
Connector
Openings / Pole |
| 350 |
HVPB105 |
90°C |
Plastic |
AL |

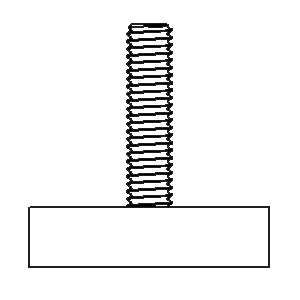

Stud, M10 |
1 |

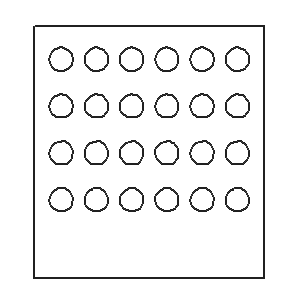

#10 - #14 (a) |
24 |
| 420 |
HVPB108 |
75°C |
Plastic |
AL |
600-#2 |
1 |

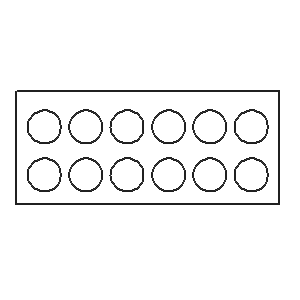

#4 - #14 |
12 |
| 420 |
HVPB109 |
75°C |
Plastic |
AL |
600-#2 |
1 |
600 - #2 |
1 |
| 430 |
HVPB101 |
90°C |
Plastic |
AL |
Stud, M10 |
1 |

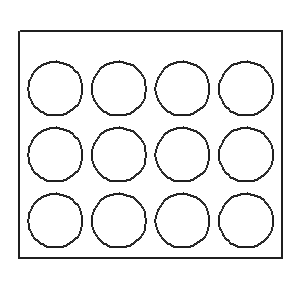

#6 - #14 (b) |
12 |
| 430 |
HVPB103 |
90°C |
Plastic |
AL |
Stud, M10 |
1 |

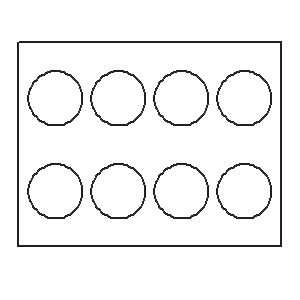

#4 - #14 (c) |
8 |
| 430 |
HVPB107 |
90°C |
Plastic |
CU |
Stud, M10 |
1 |
Stud, M10 |
1 |
| 430 |
HVPB208 |
90°C |
Plastic |
CU |
Stud, 1/2-13 x 1.44" |
1 |
Vida 1/2-13 x 1.44" |
1 |
| 750 |
HVPB112 |
90°C |
Plastic |
CU |
Stud, 3/8 |
1 |
Vida, 3/8 |
1 |
| 750 |
HVPB114 |
90°C |
Plastic |
CU |
Stud, 1/2 |
1 |
Vida, 1/2 |
1 |
| 760 |
HVPB210 |
75°C |
Plastic |
AL |
500 - #4 |
2 |
#2 - #14 |
12 |
| 760 |
HVPB211 |
75°C |
Plastic |
AL |
500 - #4 |
2 |
2/0 - #14 |
8 |
| 860 |
HVPB205 |
90°C |
Plastic |
AL |
Stud, M10 |
1 |

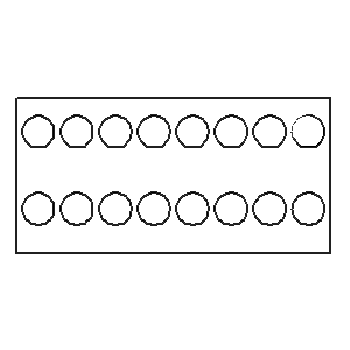

#4 - #14 (c) |
16 |
| 860 |
HVPB207 |
90°C |
Plastic |
AL |
Stud, M10 |
2 |
#4 - #14 (c) |
16 |
| 860 |
HVPB201 |
90°C |
Plastic |
AL |
Stud, M10 |
1 |

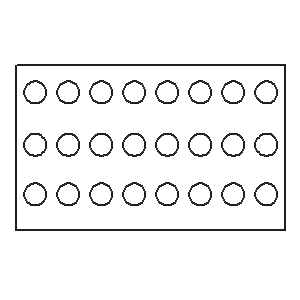

#6 - #14 (b) |
24 |
| 860 |
HVPB203 |
90°C |
Plastic |
AL |
Stud, M10 |
2 |
#6 - #14 (b) |
24 |
| 950 |
HVPB602 |
90°C |
Plastic |
AL |
600 - #2 |
2 |
600 - #2 |
2 |
| 1500 |
HVPB212 |
90°C |
Plastic |
CU |
Stud, 3/8 |
2 |
Vida, 3/8 |
2 |
| 1500 |
HVPB214 |
90°C |
Plastic |
CU |
Stud, 1/2 |
2 |
Vida, 1/2 |
2 |
(a) suitable for #8 AWG, limited to 40A per wire, copper only
(b) suitable for #4 AWG, limited to 75A per wire, copper only
(c) suitable for #2 AWG, limited to 95A per wire, copper; 75A per wire, aluminum
