Self cooled Axial resistors

Click to reach us online

Axial resistors CS, SR

Features

  • Power 2 - 15W
  • Overload factor 5xPn@5s
  • Tolerance ± 5% (on reqeust up to ± 1%)
  • Protection degree IP00
  • Ohmic range E24 series (0R01 - 82kR)
  • Natural air cooled

Technical data

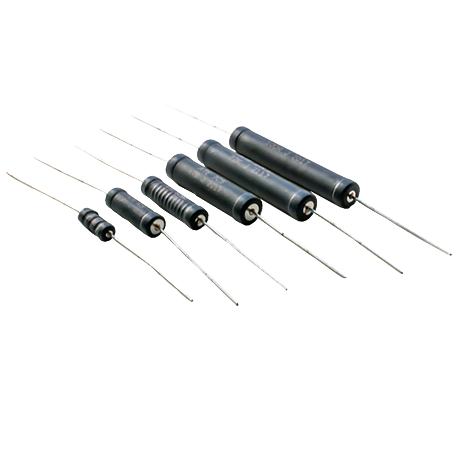

CS and SR resistors are axial wirewound ceramic resistors with a silicone based coating. The nominal power ranges from 2 till 15W. They are used in a wide variety of applications. Standard tolerance is 5%. Available on request is 1%. CS and SR resistors follow the E24 Ohmic values series. Small quantities are mostly available from stock for fast prototyping. SR types are ideally suited for mounting directly on capacitors for voltage sharing.

Axial resistors CS, SR
ATE Type MIL PRF 26H Type Rated power (W) Resistance range (Ohm) Voltage Limit (V) Temperature rise (°C/W) Weight (g)  Dimensions
D (mm) L (mm)

d (mm)
2CS RW69V 3 0.01- 5K6 130 91  1.2 5.2±0.5 12±0.8 0.8
3CS - 4 0.01- 10K 200 74 1.8 6±0.5 13.5±0.8 0.8
5CS RW74U 6  0.01- 24K 380 52 3.2 8±0.5 22±1.6 0.8
6CS RW67V 7 0.01- 27K 435 45 3.8 8±0.5 25±1.6 0.8
7CS RW55V 10 0.01- 47K 685 30 7 9.5±0.5 35±1.6 0.9
10CS RW68V 13 0.01- 68K 940 24 9 9.5±0.5 46±1.6 0.9
12CS RW56V 15 0.01- 82K 1100 21 10 9.5±0.5 51±1.6 0.9
